Tantalum Tungsten Alloy

We provide tantalum tungsten alloy with shaped and machined products upon your request. All products as pure tantalum are available by Ta-2.5W, but thin foil is not available for Ta-10W. Ta-10W has poor ductility and machinability cause of the high content of tungsten.

Specifications for tantalum tungsten rolling products.

Ta-W alloy sheet (Ta2.5W, Ta10W)
Ta-W alloy foil (Ta2.5W)

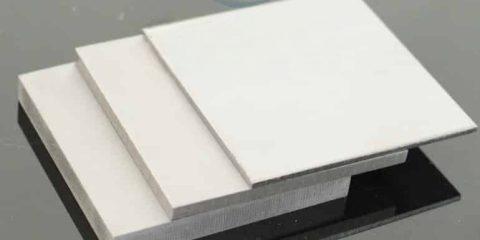

Tantalum tungsten alloy plate/board (Ta2.5W, Ta10W)
Material: R05200, R05252(Ta-2.5W), R05255(Ta-10W)
Ta-2.5W ( 97.5% Pure tantalum, 2.5% Pure tungsten)
Ta-10W ( 90% Pure tantalum, 10% Pure tungsten)
Standard: ASTM B708-98

Special requirements to be agreed on by the supplier and buyer of negotiations.

Information for Ta-W alloy forged, swagged and drawn products.

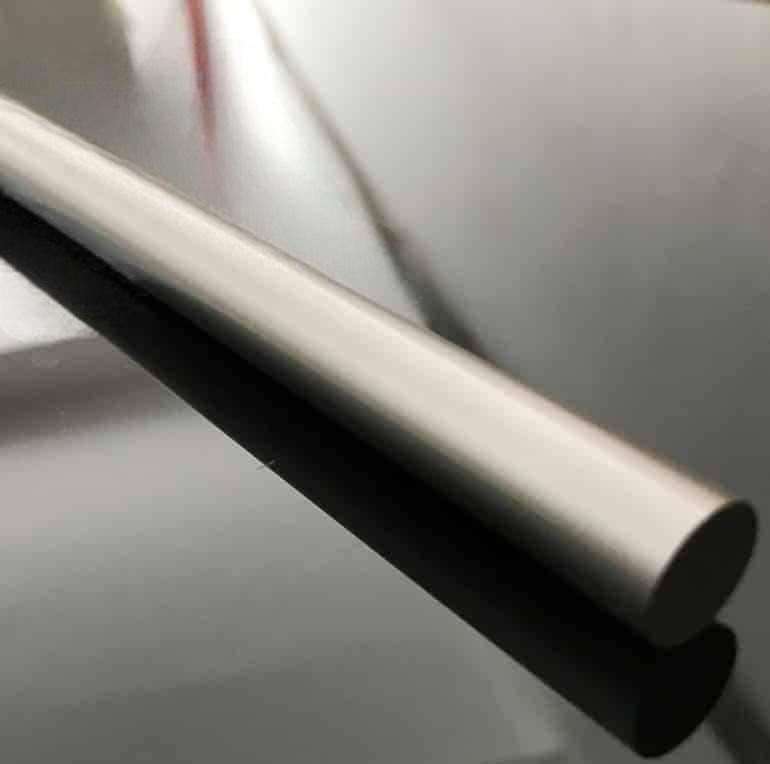

Ta-W alloy rod (Ta-2.5W, Ta-7.5W, Ta-10W)

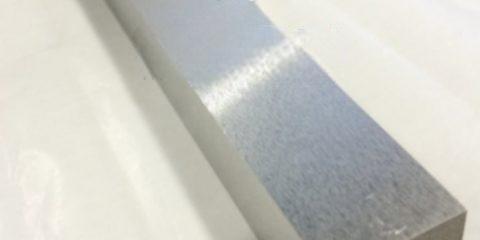

Ta-W alloy bar (Ta-2.5W, Ta-7.5W, Ta-10W)
Tantalum tungsten alloy wire (Ta-2.5W, Ta-7.5W, Ta-10W)
Available size: φ0.25~φ150mm
Material: Ta-2.5W ( 97.5% Pure tantalum ,2.5% Pure tungsten), R05252
Ta-7.5W ( 92.5% Pure tantalum, 7.5% Pure tungsten), MOQ for this material is 50kg
Ta-10W ( 90% Pure tantalum, 10% Pure tungsten), R05255
Standard: As per ASTM B365
Special requirements to be agreed on by the supplier and buyer of negotiations

Specification for Ta-W alloy tube & pipe

Ta-W alloy alloy tube (Ta-2.5W, Ta-7.5W, Ta-10W)
Tantalum tungsten alloy pipe (Ta-2.5W, Ta-7.5W, Ta-10W)
Outer Diameter: φ10.0-120mm
Wall Thickness: 1.0-5.0mm
Length: 200mm-6000mm
Standard: As per ASTM B521 – 98
Material: Ta-2.5W ( 99.75% Pure tantalum, 2.5% Pure tungsten), R05252
Ta-7.5W ( 92.5% Pure tantalum, 7.5% Pure tungsten), MOQ for this material is 50kg
Ta-10W ( 90% Pure tantalum, 10% Pure tungsten), R05255
Special requirements to be agreed on by the supplier and buyer of negotiations

Specification for round-shaped parts.

Sputtering target (Ta2.5W, Ta7.5W, Ta10W)
Disc (Ta2.5W, Ta7.5W, Ta10W)
Material: R05252 (Ta-2.5W), R05255 (Ta-10W), MOQ for Ta-7.5W alloy is 50kg
Circular targets: 25mm up to 400mm Diameter x 3mm up to 28mm Thickness (1″ – 16″ diameter x 0.1181″– 1″ thickness)
Rectangular targets: 1mm up to 25.4mm Thickness x Width up to 1000mm x Length up to 2000mm (.04″ – 1″ thick x width up to 23.62″ x length up to 40″);
Flatness: 0.1mm or 0.15% max.
Special requirements to be agreed on by the supplier and buyer of negotiations

Other tantalum alloy products:

Tantalum tungsten alloy crucibles, nuts, bolts, heating elements, alloy shielding screens, etc.
Special requirements to be agreed on by the supplier and buyer of negotiations.
