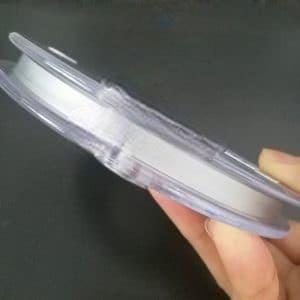

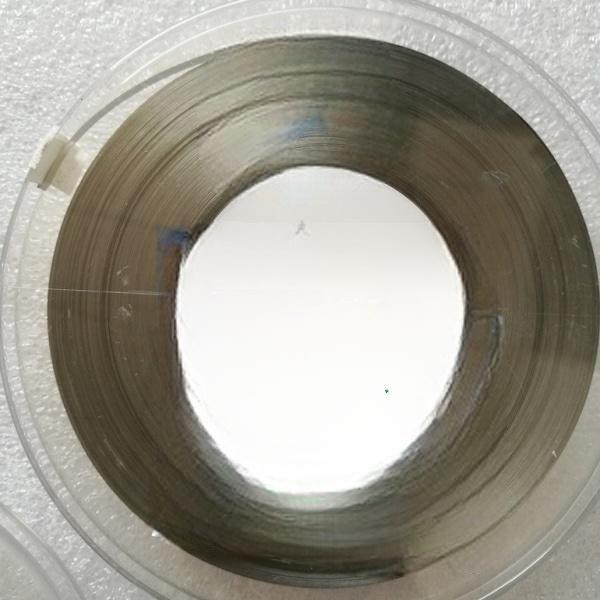

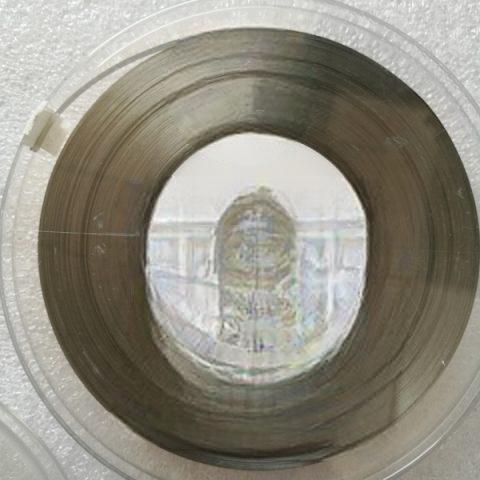

Molybdenum Ribbon

Molybdenum ribbon also can be named as molybdenum flat belt, it is rolled from molybdenum wire. Moly ribbon is mostly used in quartz glass-sealed lamps and display lighting. Our product tantalum ribbon or tantalum flat belt has the same function. The cost of the Moly ribbon is much lower than the tantalum ribbon, which makes the Mo ribbon the first choice for corresponding lighting industries. It can also be used as a component of high-temperature furnaces cause of its high-temperature tolerance.

Welding molybdenum ribbon (thin & narrow strip) is used in the circuit board welding, replacing the Lead & Tin solders for environmental protection.

Moly Ribbon

Specifications for our Moly ribbon (flat belt)

Material: Pure molybdenum, 99.95%
Moly ribbon size: 1.5-5.0mm width x 0.025-0.40mm thickness x L
Width tolerance: +/-0.02mm, Thickness tolerance: +/-0.002mm
Description of molybdenum ribbon:
Flat and smooth surface, no roll prints, bubbly, scratches, etc.
Blade shape on both sides of the Molybdenum belt
Molybdenum foil with consistent straightness

Specifications for Yttrium doped molybdenum ribbon (Yttrium doped moly ribbon)

Material: Y doped content 0.1%-0.6%, Balance: Molybdenum
Size: 1.5-4.0mm width x 0.025-0.30mm thickness x L
Width tolerance: +/-0.02mm, Thickness tolerance: +/-0.002mm
Description of yttrium doped molybdenum ribbon:
Strong anti-oxidant properties, resistance to high temperature
Flat and smooth surface, no roll prints, bubbly, scratches, etc.
Blade shape on both sides of the Molybdenum belt
Y doped Molybdenum foil with consistent straightness

We also can supply Tantalum ribbons (Tantalum Belt), Tungsten belts, Niobium belts, Nickel belt, Zirconium Niobium tubes, Molybdenum boats, Molybdenum sleeves, and other parts for lighting industries.

Tantalum ribbon (Tantalum Belt)

Material: Ta>99.95%
Size: 0.8-2.5mm width x 0.02-0.30mm thickness x L
Width tolerance: +/-0.02mm, Thickness tolerance: +/-0.002mm)

Precision rolled Tungsten ribbon, Molybdenum ribbon, and Niobium ribbon

Material: Tungsten: 99.95%, Molybdenum: 99.95%, Niobium: 99.5%
Size: 2.0-12.0mm width x 0.10-0.50mm thickness x L
Width tolerance: +/-0.02mm, Thickness tolerance: +/-0.002mm)

Please send your inquiry to inquiry.crucible@winnewtech.com for Moly ribbon, tungsten ribbon, tantalum ribbon, and niobium ribbon.
