Non-Ferrous Crucible Inc. provides high-quality pure tantalum, tantalum niobium alloy, and tantalum tungsten alloy strips to universities, research labs, and manufacturing companies.
Ta strips
The size limits of rolled products are mutually restricted. The width and length of products with different thicknesses, especially the width, have different limits.
We provide Tantalum strips with the following dimensions and specifications
-Specification: ASTM B708
-Material: R05200, R05400, TaNb3, TaNb20, Ta2.5W (R05252)
-Size: 0.1mm-0.5mm thick x 30-600mm width x L in roll
Chemical compositions for tantalum metal
| Chemical Composition (%) | |||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Grade | Main Content | Impurities (≤%) | |||||||||||
| Ta | Nb/W | Fe | Si | Ni | W | Mo | Ti | O | C | H | |||
| Ta1 | Bal | —— | 0.005 | 0.005 | 0.002 | 0.01 | 0.01 | 0.002 | 0.015 | 0.01 | 0.0015 | ||
| Ta2 | Bal | —— | 0.03 | 0.02 | 0.005 | 0.04 | 0.03 | 0.005 | 0.02 | 0.01 | 0.0015 | ||
| TaNb3 | Bal | ＜3.5 | 0.03 | 0.03 | 0.005 | 0.04 | 0.03 | 0.005 | 0.02 | 0.01 | 0.0015 | ||
| TaNb20 | Bal | 17~23 | 0.03 | 0.03 | 0.005 | 0.04 | 0.03 | 0.005 | 0.02 | 0.01 | 0.0015 | ||
| Ta2.5W | Bal | 2.0~3.0 | 0.005 | 0.005 | 0.002 | 3.0 | 0.01 | 0.002 | 0.015 | 0.01 | 0.0015 | ||
| Ta10W | Bal | 9~11 | 0.005 | 0.005 | 0.002 | 11 | 0.01 | 0.002 | 0.015 | 0.01 | 0.0015 | ||
| N≤0.01%, other details per customer’s request | |||||||||||||
Sintered and pure molten grades of tantalum have the following common properties:
-Melting point up to 2996 °C
-Good cold ductility
-Recrystallization between 800 °C and 1200 °C (depending on the degree of deformation and purity)
-Excellent resistance to aqueous solutions and metal melts
-Superconductivity
-High biocompatibility
Tantalum and its alloy products are also available in the form of sheets, plates, wires, rods, ribbons, pellets, powder, sputtering targets, and discs.
Mechanical properties for tantalum rolling products:
| Grade and size | Annealed | ||
| Tensile strength min, psi (MPa) | Yield strength min, psi (MPa)(2%) |
Elongation min, % (1 inch gage length) |
|
| Pure tantalum strip, sheet, foil, and plate (R05200, R05400) | |||
| Thickness<0.060″(1.524mm) | 30000 (207) | 20000 (138) | 20 |
| Thickness≥0.060″(1.524mm) | 25000 (172) | 15000 (103) | 30 |
| Ta-10W (R05255) Tantalum tungsten alloy sheet and plate | |||
| Thickness<0.125″ (3.175mm) | 70000 (482) | 60000 (414) | 15 |
| Thickness≥0.125″ (3.175mm) | 70000 (482) | 55000 (379) | 20 |
| Ta-2.5W (R05252) Tantalum tungsten alloy sheet and plate | |||
| Thickness<0.125″ (3.175mm) | 40000 (276) | 30000 (207) | 20 |
| Thickness≥0.125″ (3.175mm) | 40000 (276) | 22000 (152) | 25 |
| Ta-40Nb (R05240) Tantalum niobium alloy sheet and plate | |||
| Thickness<0.060″(1.524mm) | 40000 (276) | 20000 (138) | 25 |
| Thickness>0.060″(1.524mm) | 35000 (241) | 15000 (103) | 25 |

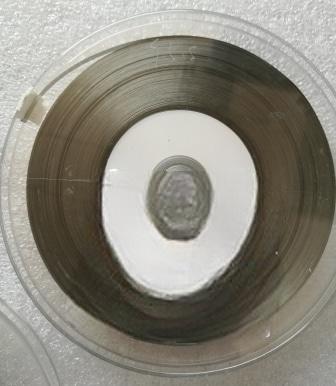

Tantalum Strip
Applications of Tantalum Strip
-Electronics: Tantalum strip is widely used in the production of capacitors for electronic devices. Its high capacitance and stability make it ideal for cell phones, computers, and other electronic components.
-Aerospace: Tantalum’s high melting point and corrosion resistance make it suitable for aerospace applications. It is used to make parts for aircraft engines, rockets, and other high-temperature and harsh environment components.
-Chemical Processing: Tantalum’s excellent corrosion resistance makes it valuable in the chemical industry. It is used to make equipment such as reaction vessels, heat exchangers, and pipes that handle corrosive substances.
-Medical Devices: Tantalum is used in certain medical devices, including implants and instruments because it is biocompatible and resistant to body fluids.
-Nuclear Applications: Tantalum’s ability to withstand radiation makes it suitable for use in nuclear reactors and related applications.
Packing information for our tantalum
Our tantalum products are mostly packed in wooden crates, which can protect items during transportation and handling.
We can also provide tantalum alloy strips and other customized parts, please send us your request to inquiry.crucible@winnewtech.com for any needs on tantalum products.
