Niobium Mesh

We provide niobium wire mesh, sheet expanded mesh, platinized mesh anode, and stamped mesh.

Wire mesh: 20-180 mesh, weaved by Nb metal wire.

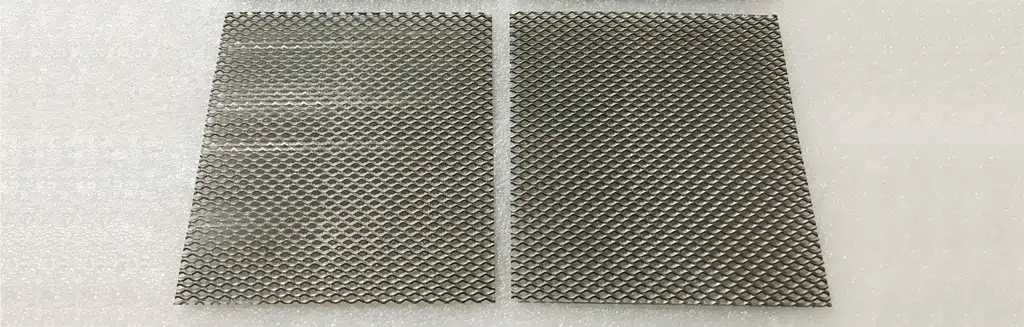

Sheet expanded mesh: Opening size 1×1 mm to 50 x 50 mm, per customer request, expanded by niobium sheets.
Stamped mesh: Opening size 1-50mm diameter, per customer request, stamped by niobium sheets.
Surface for un-coated mesh: Black oxide, chemically cleaned

Applications
Noble metal electroplating, aluminum wheel hub electroplating and special electroplating, recycle, anodic oxidation, and electroplating.

Platinized niobium mesh:

Features of platinized Niobium anode (Mesh, wire, sheet, plate, rod, rube)
4-5 times more than platinized titanium mesh anode, but save 2.5 times the cost of the latter. Nice current distribution and even thickness.

The platinum layer is firmly combined with the niobium-based substrate, and the performance is extremely stable. It is used for ceramic composite electroplating and has the advantages of strong current and low voltage.

Application: seawater, potassium gold cyanide + citric acid, horizontal electroplating, pulse electroplating, cathodic protection, acid and alkaline electroplating solutions, fluorine-containing solutions, and other special electroplating solutions.

Niobium is a chemical element with the symbol Nb and atomic number 41. It is a soft, grey, ductile transition metal. It has physical and chemical properties similar to the element tantalum, and the two are therefore difficult to distinguish.

Nb is used in various superconducting materials. These superconducting alloys, also containing titanium and tin, are widely used in the superconducting magnets of MRI scanners. Other applications of Nb include welding, nuclear industries, electronics, optics, numismatics, and jewelry. In the last two applications, the low toxicity and iridescence produced by anodization are highly desired properties.

Dimensions and coating thickness can be customized in range. Contact us for any inquiries.
