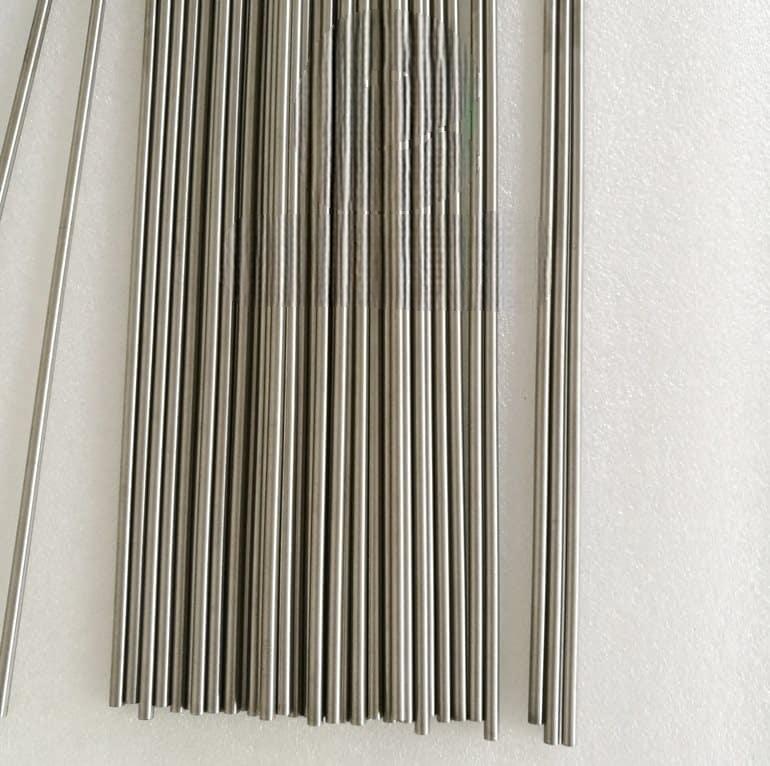

provides tantalum rod, cylinders (Ta cylinder) with a length of up to 2m and a diameter of up to 120 mm. We also offer tantalum tungsten alloy and tantalum niobium alloy rods per request.
Tantalum has great conductivity of heat and electricity. Tantalum rod is widely used in:
-Ion sputtering and spray materials
-High-temperature furnace parts
-Prosthetic devices for humans
-Tantalum electrolyte capacitors
-Vacuum electron cathode emission source
Specifications for tantalum and tantalum alloy rod
Process: Forging, Swaging, Drawing, etc.
Specifications: As per ASTM B365
Grades: R05200, R05400, UNS Grade R05252 (Ta-2.5W), UNS Grade R05255 (Ta-10W), UNS Grade R05240 (Ta-40Nb)
Diameter: 4~φ120mm, Length: 2000mm Max
Mechanical properties for tantalum and tantalum alloy rod
| Product condition | Tensile strength (MPa) | Elongation, % |
| Annealed | 300～600 | 10～30 |
| Half annealed | >600～1000 | <5 |
| Un-annealed | >1000 | <5 |
Chemical compositions for tantalum and tantalum alloy
| Element | R05200 | R05400 | R05255 | R05252 | R05240 |
| C | 0.01 | 0.01 | 0.01 | 0.01 | 0.01 |
| O | 0.015 | 0.03 | 0.015 | 0.015 | 0.02 |
| N | 0.01 | 0.01 | 0.01 | 0.01 | 0.01 |
| H | 0.0015 | 0.0015 | 0.0015 | 0.0015 | 0.0015 |
| Fe | 0.01 | 0.01 | 0.01 | 0.01 | 0.01 |
| Mo | 0.02 | 0.02 | 0.02 | 0.02 | 0.02 |
| Nb | 0.1 | 0.1 | 0.1 | 0.5 | 35.0–42.0 |
| Ni | 0.01 | 0.01 | 0.01 | 0.01 | 0.01 |
| Si | 0.005 | 0.005 | 0.005 | 0.005 | 0.005 |
| Ti | 0.01 | 0.01 | 0.01 | 0.01 | 0.01 |
| W | 0.05 | 0.05 | 9.0–11.0 | 2.0–3.5 | 0.05 |

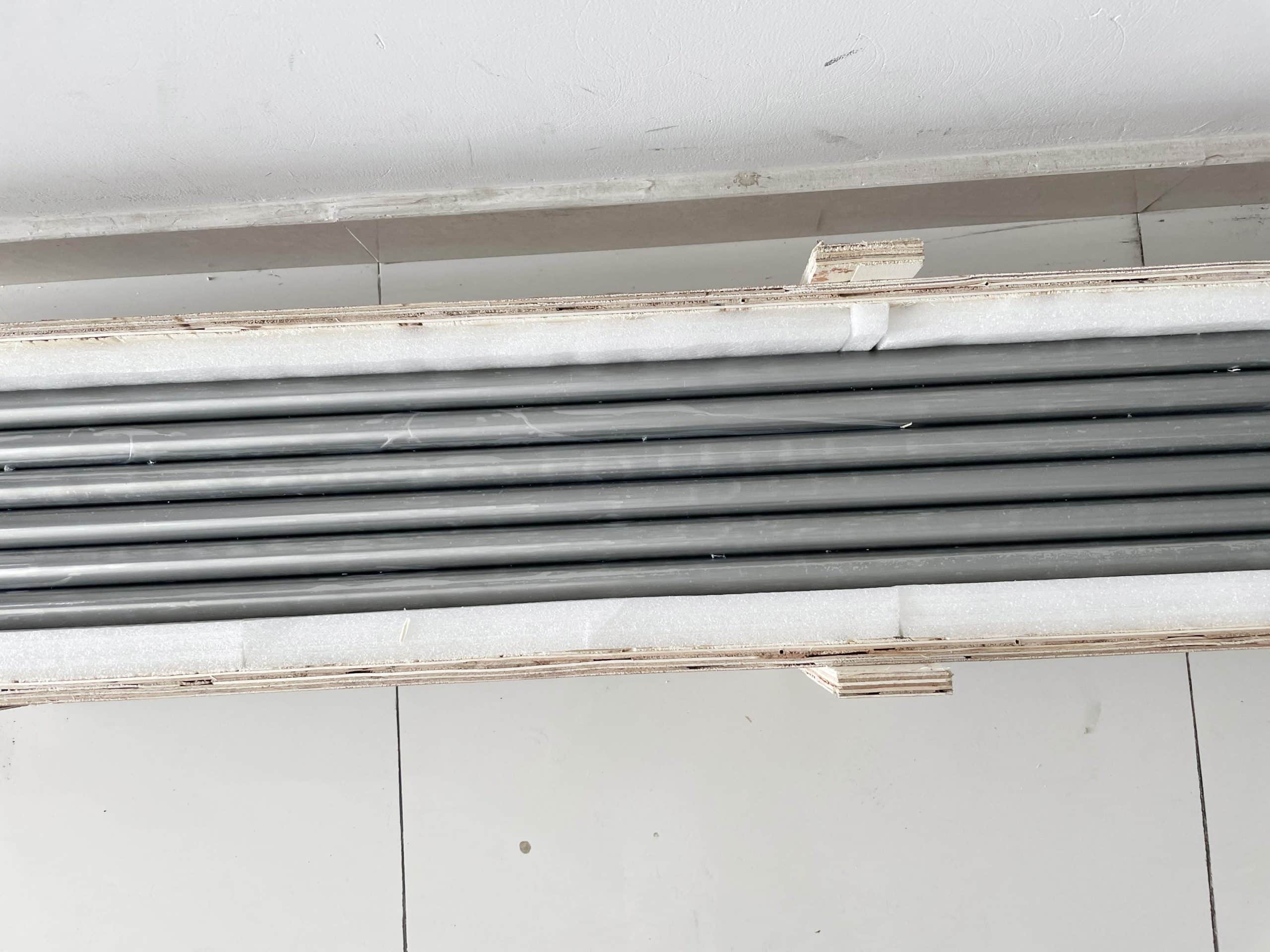

Packaging of tantalum
Our tantalum rod is tagged and labeled externally to ensure efficient identification and quality control. Great care is taken to avoid any damage to tantalum and its alloy which might be caused during storage or transportation. The outer package is usually a wooden crate.
We can also provide tantalum alloy rods and other customized parts, please send us your request to inquiry.crucible@winnewtech.com for any needs on tantalum products.
