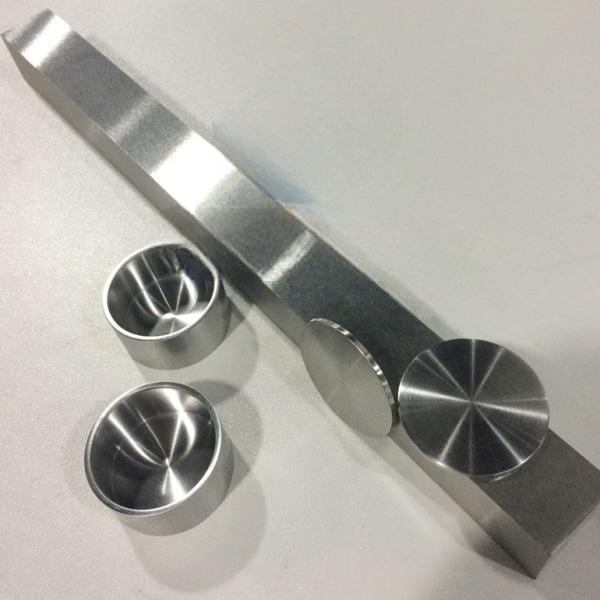

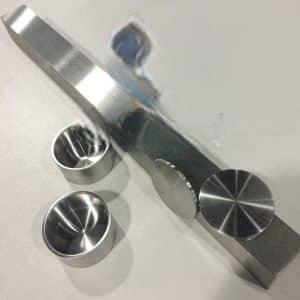

Molybdenum Bar

Molybdenum bar, TZM Alloy Bar, and MoLa Alloy Bar can be used as molybdenum electrodes, steel-making additives, electric vacuum parts, gas pipes, lead wire, poles, sidebars, daily-use glass, optical glass, insulation material, and glass fiber.

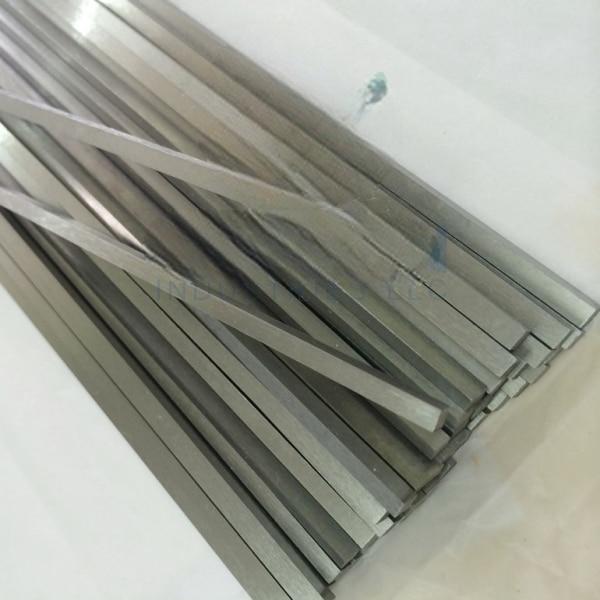

Moly Rectangular Bar

Molybdenum is used for its extremely high melting point and relative flexibility. Molybdenum has a melting point of 2,623 °C. Molybdenum has a high elastic modulus, and only tungsten and tantalum have higher melting points. Typical applications for Molybdenum are crucibles, evaporation boats, propulsion components, x-ray tubes, the lighting industry, glass melting electrodes, high-temperature furnaces, sputtering targets, heat sinks, heating elements, electrodes, stirrers, orifice plates, support members, mandrels, shields, sintering trays, filaments, furnace windings, thermocouple sheaths, nose cones, nozzles, jet tabs, contacts, brazing fixtures, boring bars, tools, heat radiation shields, cathodes, and aircraft and missile parts and nuclear energy applications where high-temperature resistance is crucial.

Surface Finish for Moly bars

Black –Surface covered with processing lubricants and oxides.

Cleaned – The surface is chemically cleaned to remove all lubricants and oxides.

Ground – The surface is centerless ground to remove all coating and to achieve precise diameter control.

The molybdenum bar is manufactured as random-length pieces or cut to customized lengths in thick and width ranging from 0.125″ to 3″. Wider molybdenum is named as molybdenum block and molybdenum plate.

Specification for Moly bar

TZM alloy bars & Mo-La Alloy bars are also available. Please send us your specifications for molybdenum products to inquiry.crucible@winnewtech.com.

Packaging for molybdenum bar

The standard package for Pure Moly, TZM alloy bar, and Mo-La alloy bar is wooden crate, so that the goods can be protected during handling and transportation.
