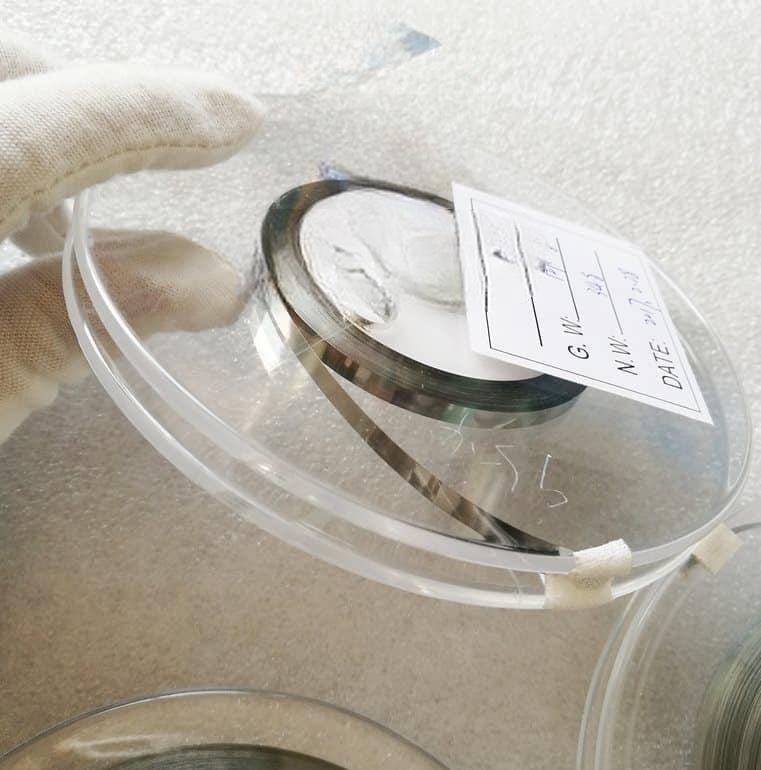

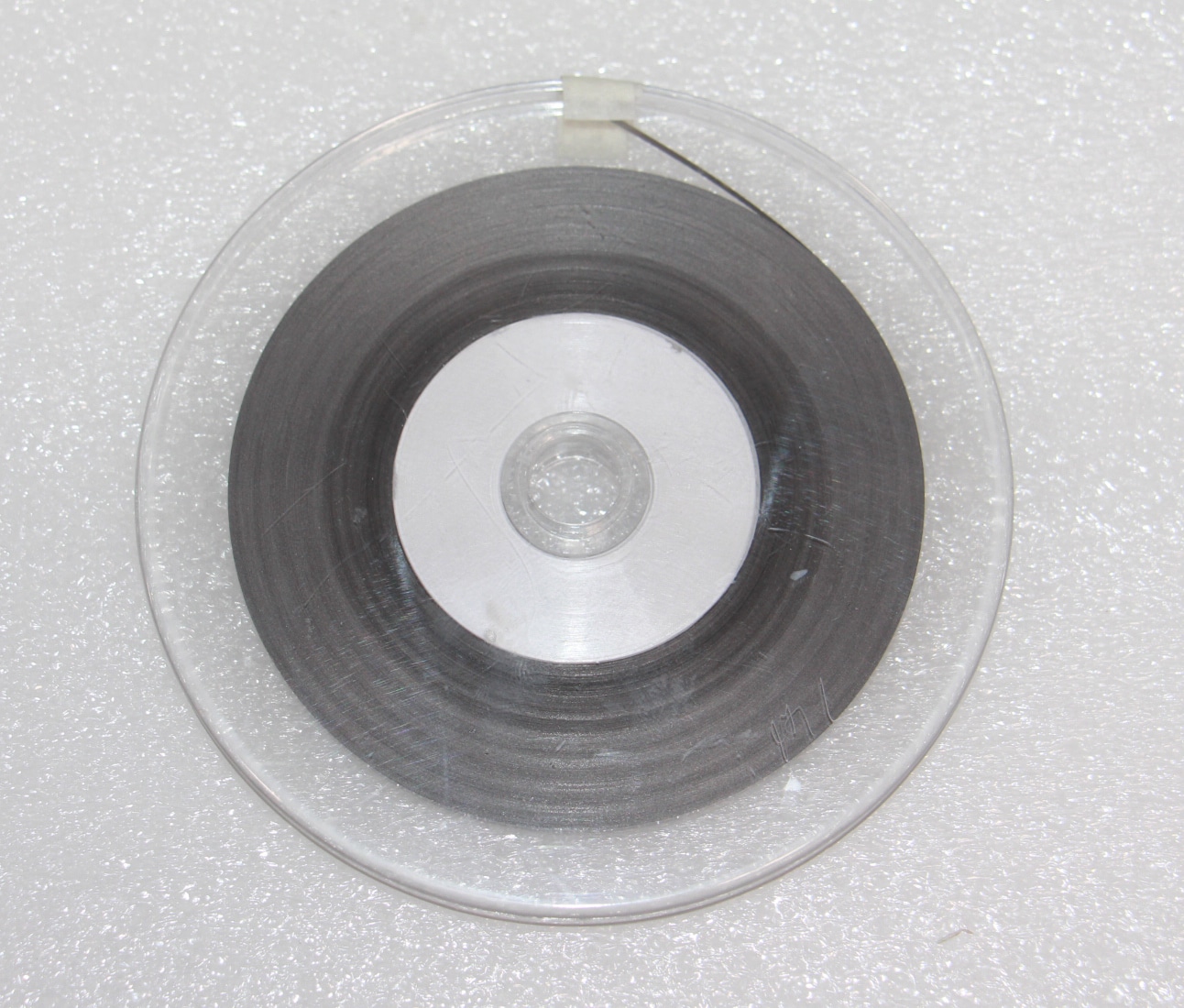

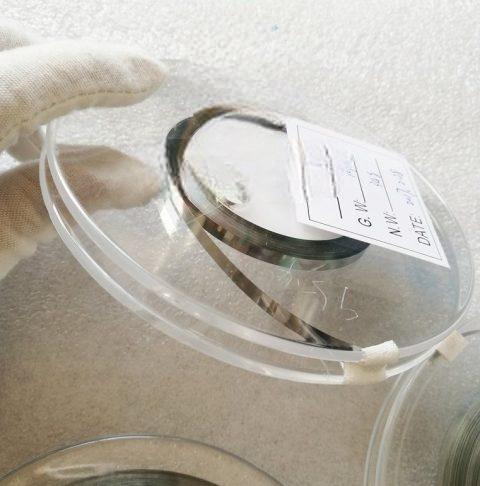

Tantalum Ribbon

Tantalum ribbon & strip can take hydrogen, oxygen, and nitrogen away from the atmosphere and is the ideal product for vacuum applications in the lighting industry. Tantalum is corrosion-resistant and has good thermal conductivity, it can be used in the manufacture of heating elements, vacuum tubes, and other high-temperature parts.

Specifications for our tantalum ribbon (Tantalum belt, Ta ribbon)

Material: R05200, Electron beam or vacuum-arc cast tantalum & R05400, Sintered tantalum
Size: 0.8-2.5mm width x 0.02-0.30mm thickness x L
Width tolerance: +/-0.2mm, Thickness tolerance: +/-0.003mm)
Strong anti-oxidant properties, resistance to high temperature
Flat and smooth surface, no roll prints, bubbly, scratches, etc.

Application for tantalum belt, Ta ribbon, Strip

1. Used in laboratory equipment.
2. As a substitute for platinum.
3. Used in manufacturing superalloys and electron-beam melting.
4. Used in metallurgical, machinery processing, glass, and ceramic industries.
5. As a superalloy additive in nickel-based alloys.
6. As a light source material for halogen lamps, sodium lamps, auto lamps, quartz glass lamps, etc.

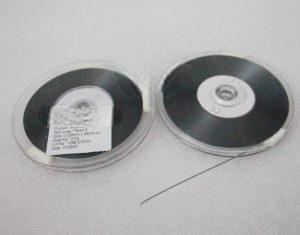

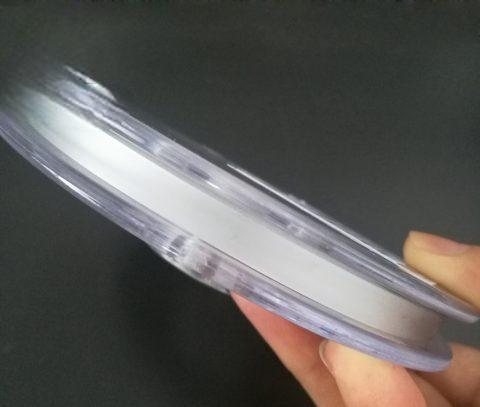

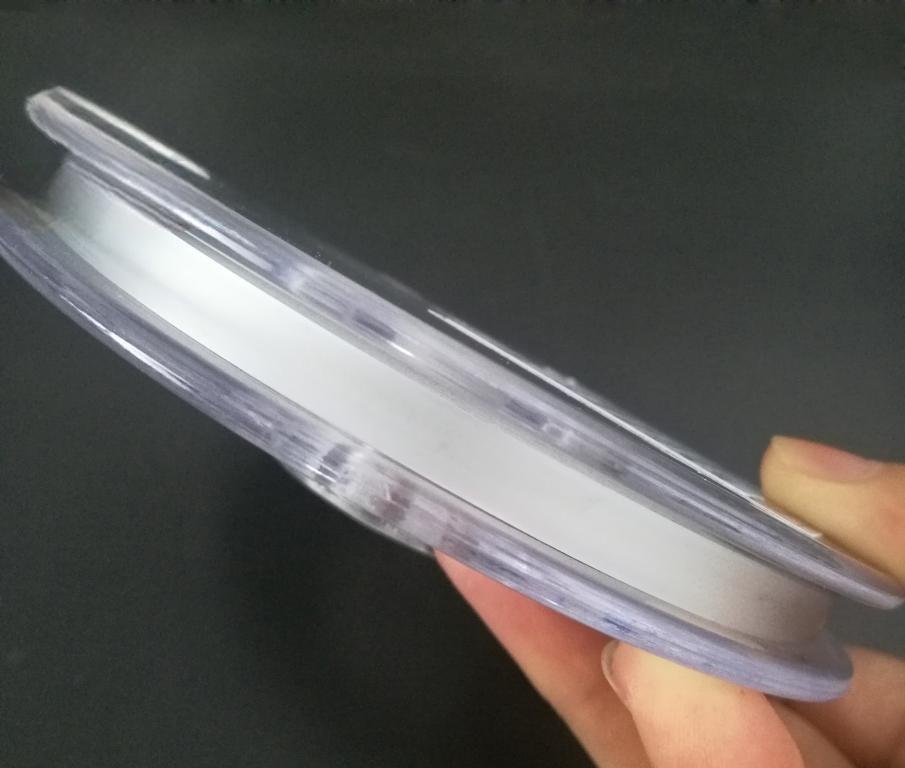

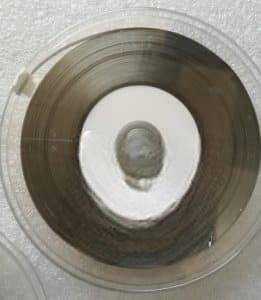

Mo Ribbon

Precision rolled Tungsten ribbon, Molybdenum Ribbon, and Niobium ribbon

Material: Tungsten≥99.95%, Molybdenum≥99.95%, Niobium≥99.5%
Size: 2.0-12.0mm width x 0.10-0.50mm thickness x L
Width tolerance: +/-0.02mm, Thickness tolerance: +/-0.002mm)

We also supply tungsten belts, niobium belts, nickel belts, zirconium niobium tubes, molybdenum boats, molybdenum sleeves, and other parts for lighting industries. Please send your inquiry to inquiry.crucible@winnewtech.com for tantalum and other products for the lighting industries.

Packing of tantalum ribbon

We provide tantalum in roll and on a plastic spool. The outer package will be a carton or wood crate according to the quantity and size of the tantalum ribbon.
